Standalone 66” Lightboard LGS66T

SPECIFICATION

lightboard

Model No. : Standalone 66” Lightboard

Part No. : LGS66T

Product Name : Standalone Learning Glass 66-inch Lightboard with Power Adapter, Dimmer, Legs, and Desk

Features :
illumiclearTM Tempered Glass
Smudge-Free
32′′ x 57′′ Working Area
30 Minute Assembly
Adjustable Height Desk
4000K Natural White Presenter Lights
Dual Channel No-Flicker Dimmer
Portable with Casters

Introduction

The Standalone 66” Lightboard from Learning Glass features our patented illumiclearTM Tempered Glass to ensure the best clarity and optical performance. illumiclearTM is the technology that allows a smudge-free workplace with minimal streaks and squeaks. The working area of the unit is 32′′ x 57′′. This size has been proven to be more than adequate for all types of lectures and presentations alike. It provides the ideal ratio of presenter to material, ensuring that the material and presenter are both at a good viewing size. Fghdgh

The Learning Glass Lightboard uses high quality and high density LEDs. Our LEDs have been tested with over a 100,000 hour lifespan with little to no degradation to performance. All of our Lightboard units come standard with presenter lights that operate a natural white tempature of 4000K. This makes the presenter look natural to the viewer. The light intensity can be varied with the use of the included No-Flicker Dimmer. This greatly helps with lighting presenters of varying skin and complextion. Our special dimmers do not have have a flicker effect when being recording using modern day video cameras. The LEDS have been tested up to 240 frames per second with no flicker effect.

The assembly time is 30 minutes or less and does not require any technical skillset. The only tool required is a #2 Philips head screwdriver to assemble the glass and legs together. The desk is ultra portable and easy to assembly. With the help of the locking casters, the glass and desk can easily be moved for storage or set up in a different location.

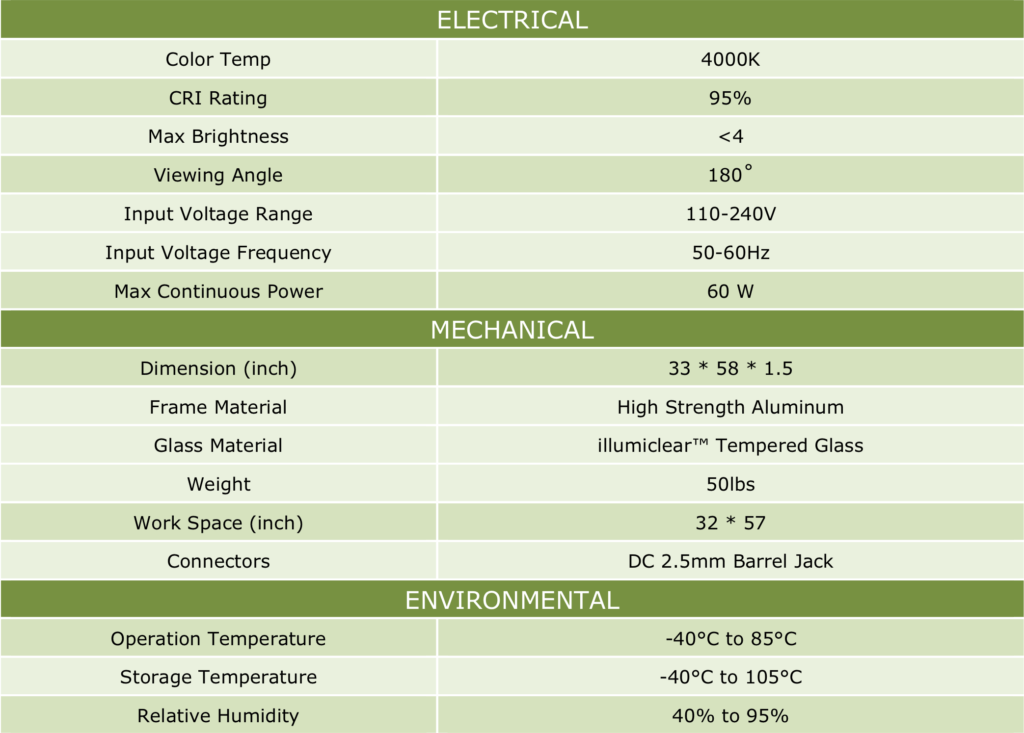

Specifications

Dimensions

Wiring Block Diagram

In the Box

1 * Learning Glass Lightboard LGS66
1 * Power Supply
1 * Power Adapter
1 * No-Flicker Dimmer
2 * Legs
8 * Philips Screws
1 * Desk
2 * Desk Legs
1 * Desk Hardware
4 * Desk Casters
4 * Markers
2 * Cleaning Towels
1 * Squeegee
1 * Quick Start Setup Guide
